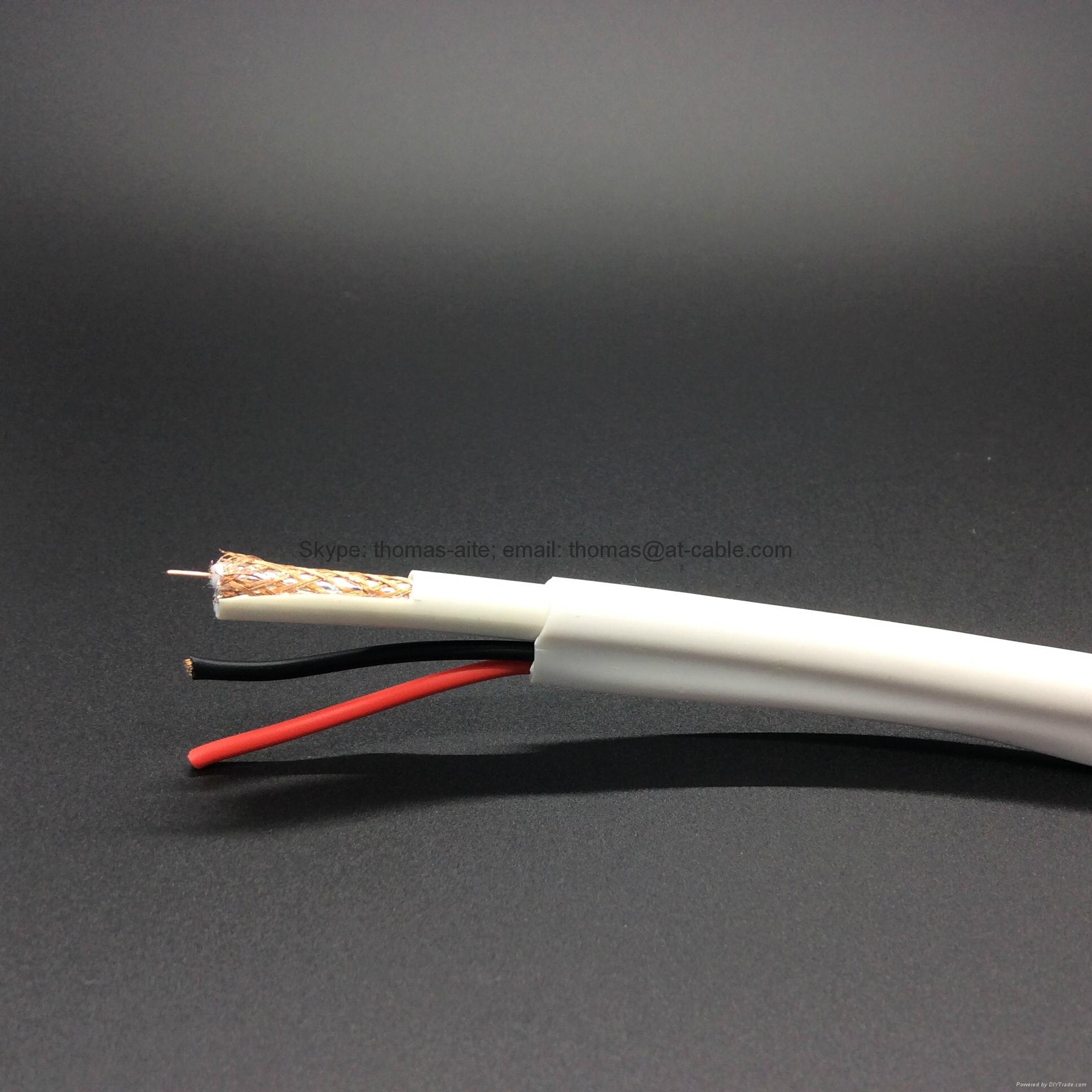

RG59 Siamese Coaxial Cable:
Spec: {0.5mm Cu+3.5mm FPE+AL Foil+16x3x0.12mm CCA +5.6mm PVC +2*(24*0.2mmCCA+2.0PVC)}+9.5PVC Black or White, Packing: 200m/coil or 500m/wooden drum
FOB Shanghai Price: 31.00usd/ 200m coil; 80.00usd/ 500m wooden drum
It can transfer a long distance to 1000meter. And can guarantee the figure from camera is clear enough.
| Impedance (Ω) |
75±3 |
| Capacitance (pF/m) |
52±2 |
| Velocity of Propagation(﹪) |
85.0 |
| Sparker Test |
4000 |
|
Return Loss 5-1000MHz(dB)
|
≥22 |
|
Return Loss 1000-3000MHz(dB)
|
≥20
|
Electrical Characteristics
Attenuation(@20℃)
| Frequency (MHZ) |
Min Attenuation (dB/100ft) |
Max Attenuation (dB/100m) |
| 5 |
0.9 |
2.8 |
| 55 |
2.1 |
6.7 |
| 187 |
3.6 |
11.8 |
| 211 |
3.8 |
12.5 |
| 400 |
5.1 |
16.7 |
| 500 |
5.7 |
18.7 |
| 750 |
7.0 |
22.8 |
| 860 |
7.5 |
24.6 |
| 1000 |
8.0 |
26.3 |
| 1500 |
9.9 |
32.5 |
| 1800 |
10.9 |
35.6 |
| 2200 |
12.6 |
41.2
|
