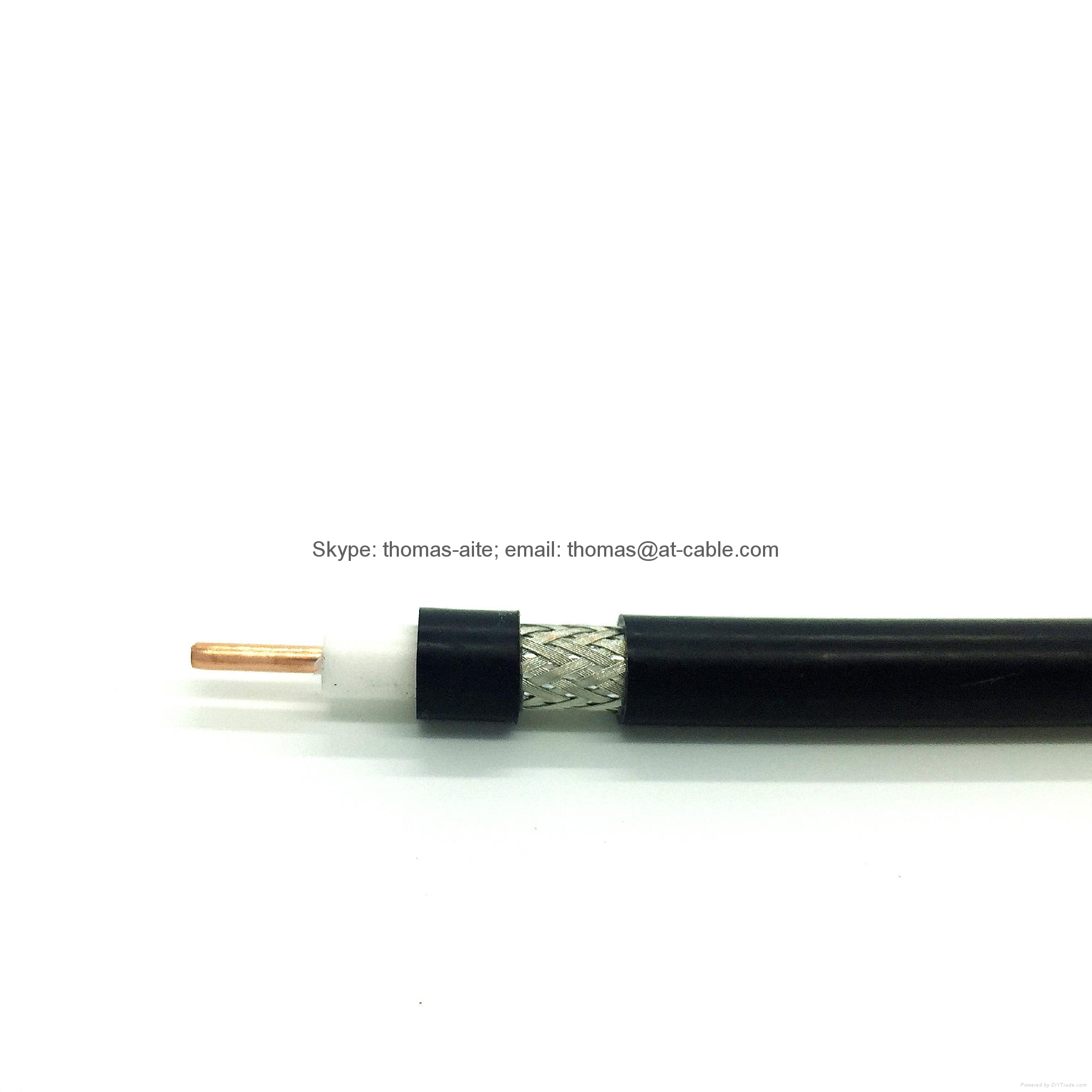

RG8
SPEC: 2.75mm Cu+7.25mm FPE+144x0.12mm BC +10.3mm PVC
| Construction |
Material |
Diameter(mm) |
| Inner Conductor |
BC |
2.75 |
| Dielectric |
Foam PE |
7.25 |
| First Shield |
AL Foil |
/ |
| Second Shield |
TC Braild |
95% |
| Outer Jacket |
PVC/PE |
10.3 |
Electrical Characteristics
| Impedance (Ω) |
50 |
| Capacitance (pF/m) |
82 |
| Velocity of Propagation(﹪) |
82
|

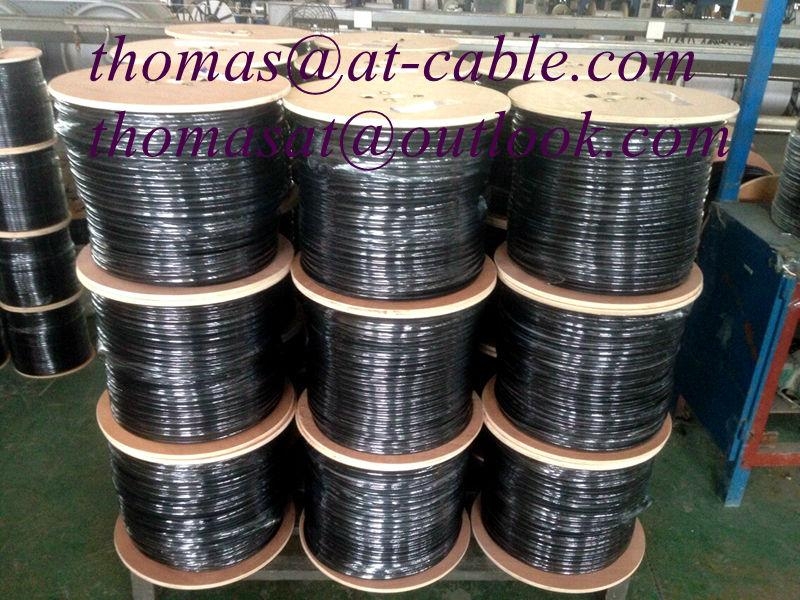

Packing: 305m/wooden drum
