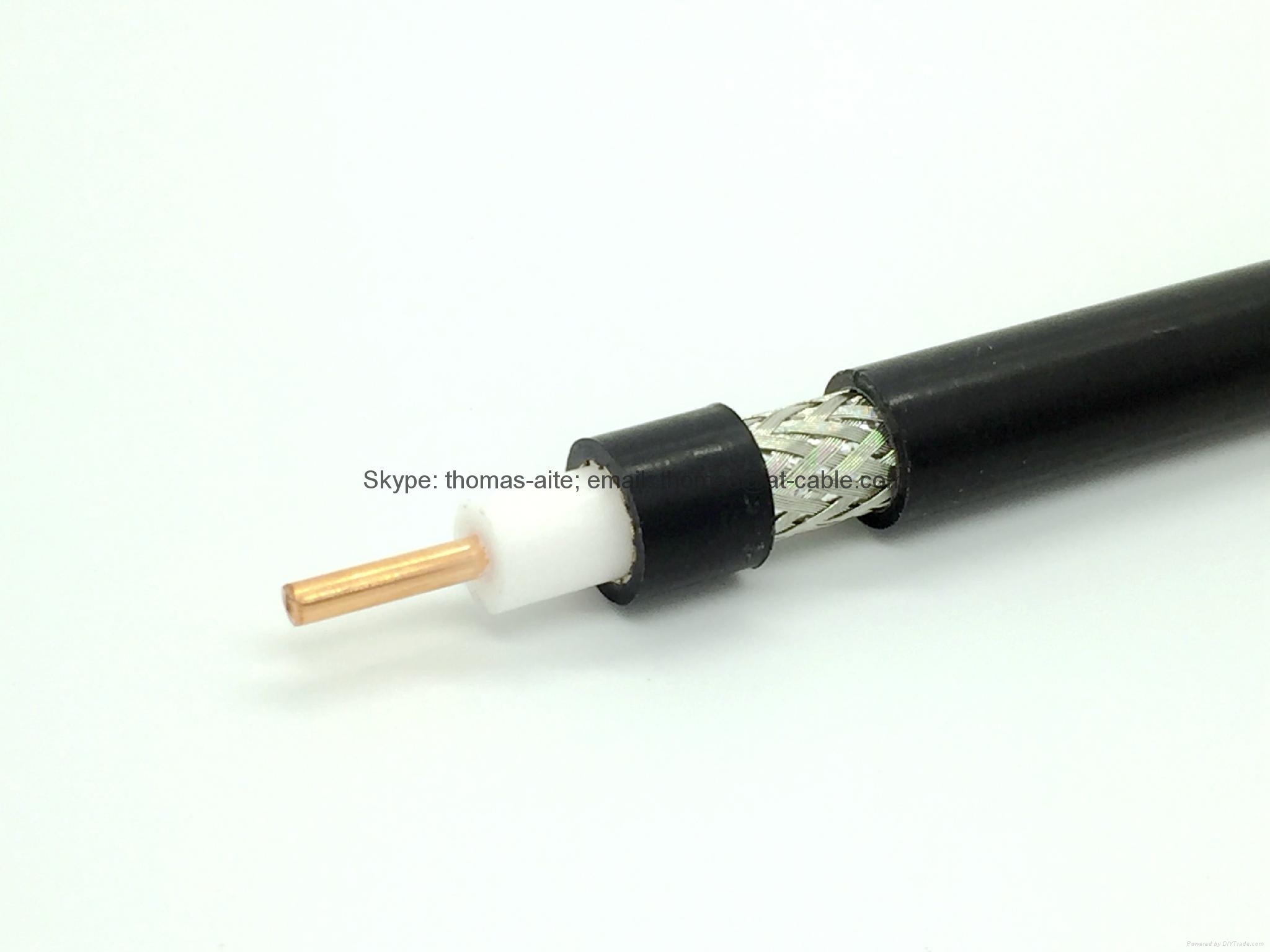

7D-FB 50ohm Coaxial Cable
4D-FB/ 5D-FB/ 7D-FB/ 8D-FB/ 10D-FB/ 12D-FB
SPEC: 2.6mm Cu/CCA +7.3mm FPE+ 0.12mm TC(35%-85%) +9.8mm PVC
| Construction |
Material |
Diameter(mm) |
| Inner Conductor |
BC/CCA |
2.6 |
| Dielectric |
Foam PE |
7.3 |
| First Shield |
AL Foil |
|
| Second Shield |
TC Braild |
35%-85% |
| Outer Jacket |
PVC/PE |
9.8 |
Electrical Characteristics
| Impedance (Ω) |
50 |
| Nominal Capacitance (pF/m) |
84 |
| Nominal Velocity of Propagation(﹪) |
82 |
| Cutoff Frequency(GHZ) |
15.8 |
| Sparker Test (VAC) |
3000 |
| V.S.W.R |
≤1.3 |
| Attenuation |
Frequency(MHZ) |
7D-FB |
| 150 |
5.4 |
| 200 |
6.3 |
| 280 |
7.5 |
| 350 |
8.4 |
| 400 |
9.0 |
| 800 |
12.8 |
| 900 |
14.1 |
| 1200 |
16.8 |
| 1500 |
19.2 |
| 1900 |
22.4 |
| 2000 |
23.2 |
| 2400 |
25.7 |
| 3000 |
29.5 |
Packing: 305m/wooden drum
